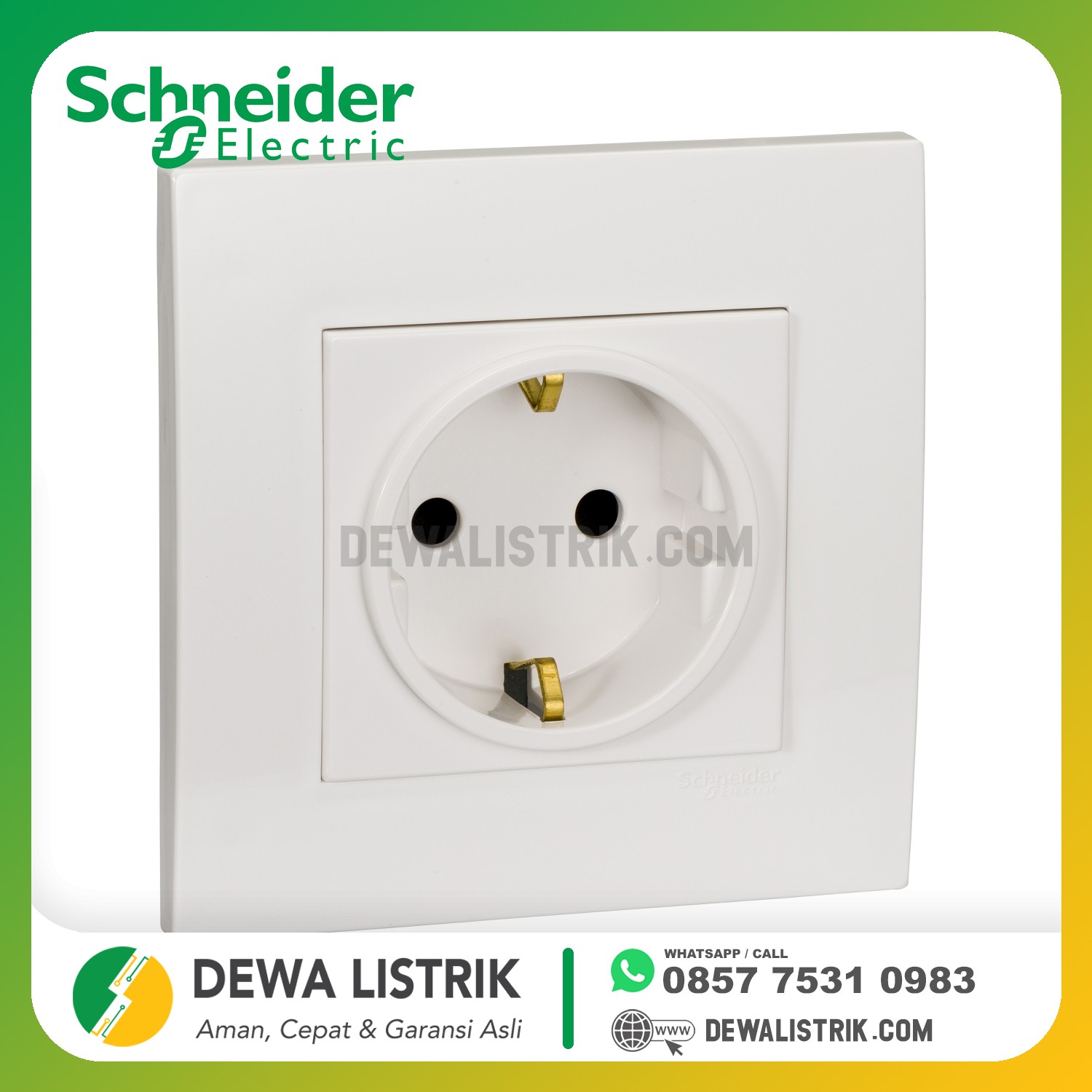

| range | Vivace |
|---|---|
| product or component type | Socket-outlet |
| device short name | KB426 |
| device application | Power supply |
| device presentation | Complete mechanism |
| outlet standard | Schuko |
| Colour tint | White |
| outlet poles configuration | 2 x 2P + E with shutters |
|---|---|
| number of gangs | 1 gang |
| material | Polycarbonate: grid plate Polycarbonate: surround Nylon: base |
| projecting depth | 8 mm |
| device mounting | Flush |
| mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| embedding depth | 35 mm |
| rated current | 16 A at 250 V AC, resistive 16 A at 250 V AC, inductive |
| network frequency | 50 Hz |
| contacts material | Brass and phosphor bronze |
| connections - terminals | Pillar terminal |
| terminal identifier | E L N |
| tightening torque | 0.4 N.m |
| clamping connection capacity | 2.5 mm² |
| width | 86 mm |
| height | 86 mm |
| standards | IEC 60884 |
|---|---|
| ambient air temperature for operation | -5…40 °C |
| relative humidity | 0…95 % |
| environmental characteristic | Indoor use |
