| range of product | Harmony Easy XA2 |
|---|---|

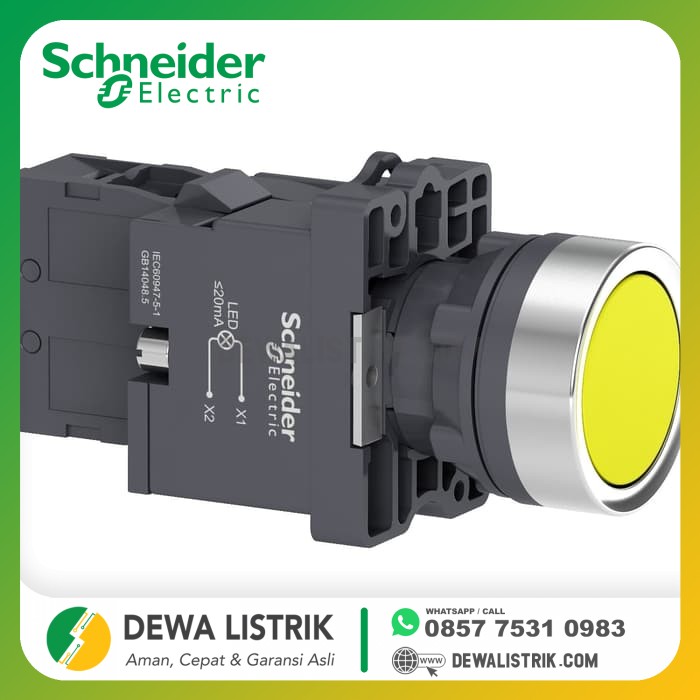

| product or component type | Complete illuminated push-button |
| device short name | XA2 |
| bezel material | Plastic |
| mounting diameter | 22 mm |
| sale per indivisible quantity | 1 |
|---|---|
| protective treatment | TC |
| operating position | Any position |
| fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
| shape of signaling unit head | Round |
| type of operator | spring return |
| operator profile | Yellow flush |
| contacts type and composition | 1 NO |
| contact operation | Slow-break |
| mechanical durability | 1500000 cycles |
| connections - terminals | Screw clamp terminals, clamping capacity: 2 x 1.5 mm² Screw clamp terminals, clamping capacity: 1 x 2.5 mm² Faston terminals, connection size: 6.3 mm Screw clamp terminals, clamping capacity: 1 x 0.5 mm² |
| tightening torque | 0.8 N.m |
| short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600 3 A at 240 V, AC-15, A600 |
| electrical durability | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| signalling type | Steady |
| light source | LED |
| bulb base | BA 9s |
| [Us] rated supply voltage | 220 V AC 50/60 Hz |
| supply voltage limits | 176…242 V AC |
| current consumption | < 20 mA |
| service life | 10000 h |
| width | 30 mm |
| height | 42 mm |
| depth | 79.5 mm |
| net weight | 0.064 kg |
| ambient air temperature for storage | -40…70 °C |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| standards | IEC 60947-5-1 GB 14048.5 IEC 60947-1 GB 14048.1 |
| product certifications | CE CCC |
| vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
