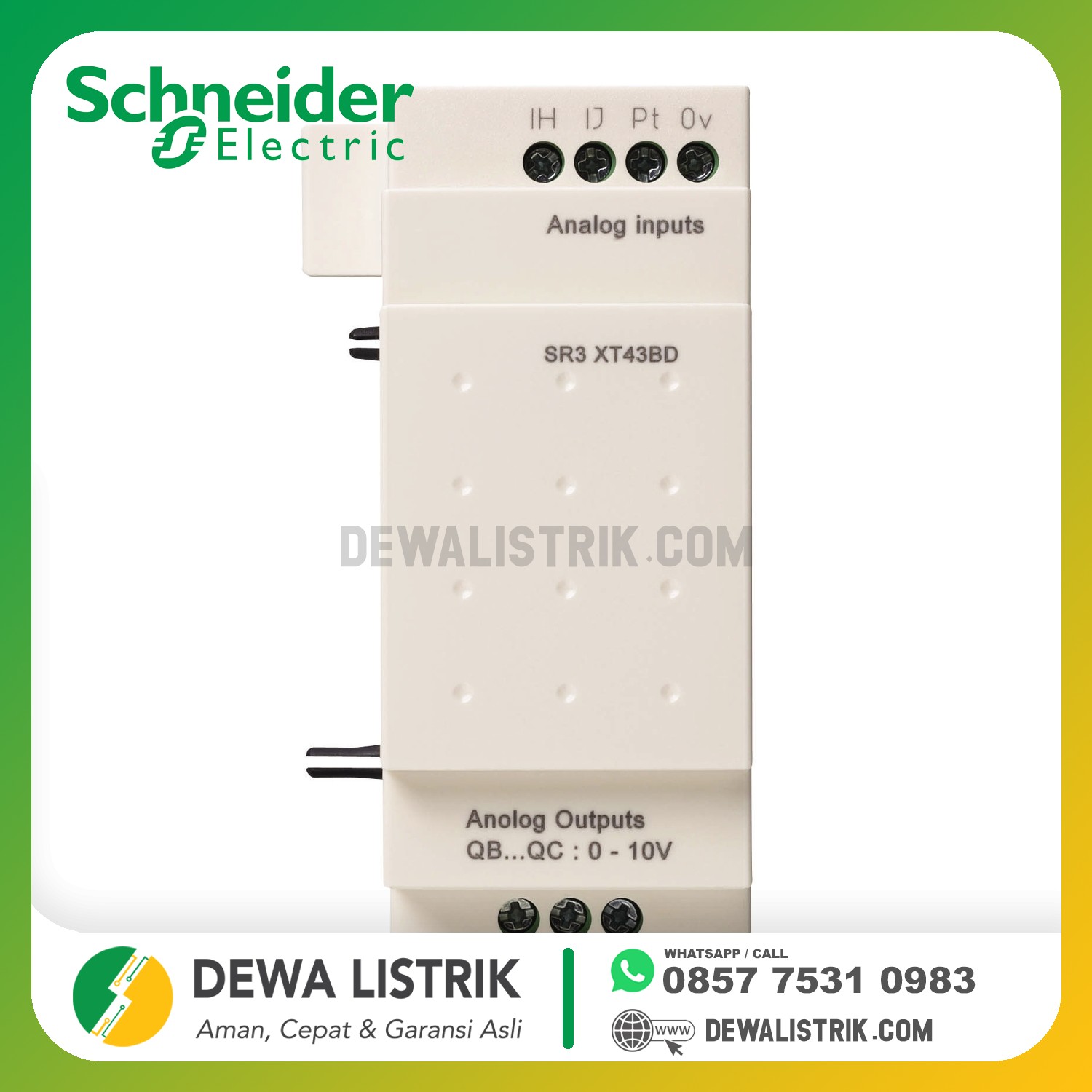

| range of product | Zelio Logic |
|---|---|
| product or component type | Analogue I/O extension module |
| analogue input number | 2 |
|---|---|
| analogue input type | Common mode |
| analogue input range | 0...10 V 0...20 mA -25...125 °C |
| temperature probe type | Pt 100, 3-wire conforming to IEC 751 |
| maximum permissible voltage | 30 V for analogue input circuit |
| [Imp] maximum permanent current | 30 mA for analogue input circuit |
| analogue input resolution | 10 bits on the input range |
| input impedance | 18 kOhm, input range: 0...10 V for analogue input circuit 247 Ohm, input range: 0...20 mA for analogue input circuit |
| analogue output number | 2 |
| analogue output range | 0...10 V |
| analogue output resolution | 10 bits on the output range |
| load type | Resistive load for analogue output |
| maximum load current | 10 mA for analogue output |
| short-circuit protection | With analogue output |
| LSB value | 0.15 °C, - 25...125 °C for analogue input circuit 20 µA, 0...20 mA for analogue input circuit 9.8 mV, 0...10 V for analogue input circuit 9.8 mV, 0...10 V for analogue output |
| conversion time | Smart relay cycle time for analogue input circuit Smart relay cycle time for analogue output |
| conversion error | +/- 1 % of the full scale value, input range: 0...10 V (25 °C) for analogue output +/- 1 % of the full scale value, input range: 0...10 V (55 °C) for analogue output +/- 1 %, input range: 0...10 V (25 °C) for analogue input circuit +/- 1 %, input range: 0...10 V (55 °C) for analogue input circuit +/- 1 %, input range: 0...20 mA (25 °C) for analogue input circuit +/- 1 %, input range: 0...20 mA (55 °C) for analogue input circuit +/- 1.5 °C, input range: - 25...125 °C (25 °C) for analogue input circuit +/- 1.5 °C, input range: - 25...125 °C (55 °C) for analogue input circuit |
| repeat accuracy | < +/- 0.3 °C, input range: - 25...125 °C at 25 °C for analogue input circuit <= +/- 1 %, input range: 0...10 V at 25 °C for analogue input circuit <= +/- 1 %, input range: 0...10 V at 55 °C for analogue output <= +/- 1 %, input range: 0...20 mA at 25 °C for analogue input circuit |
| operating distance | 10 m with screened cable for analogue input circuit 10 m with screened cable for analogue output |
| reverse polarity protection | Analogue input circuit: with |
| connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid Screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque | 0.5 N.m |
| net weight | 0.11 kg |
| product certifications | GOST UL C-Tick CSA |
|---|---|
| standards | EN/IEC 61000-4-12 EN/IEC 61000-4-5 EN/IEC 61000-4-3 EN/IEC 61000-4-4 level 3 EN/IEC 61000-4-6 level 3 EN/IEC 61000-4-2 level 3 EN/IEC 60068-2-6 Fc EN/IEC 61000-4-11 EN/IEC 60068-2-27 Ea |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| environmental characteristic | EMC directive conforming to EN/IEC 61000-6-2 EMC directive conforming to EN/IEC 61000-6-3 EMC directive conforming to EN/IEC 61000-6-4 EMC directive conforming to EN/IEC 61131-2 zone B Low voltage directive conforming to EN/IEC 61131-2 |
| disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| pollution degree | 2 conforming to EN/IEC 61131-2 |
| ambient air temperature for operation | -20…40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| ambient air temperature for storage | -40…70 °C |
| operating altitude | 2000 m |
| maximum altitude transport | 3048 m |
| relative humidity | 95 % without condensation or dripping water |
